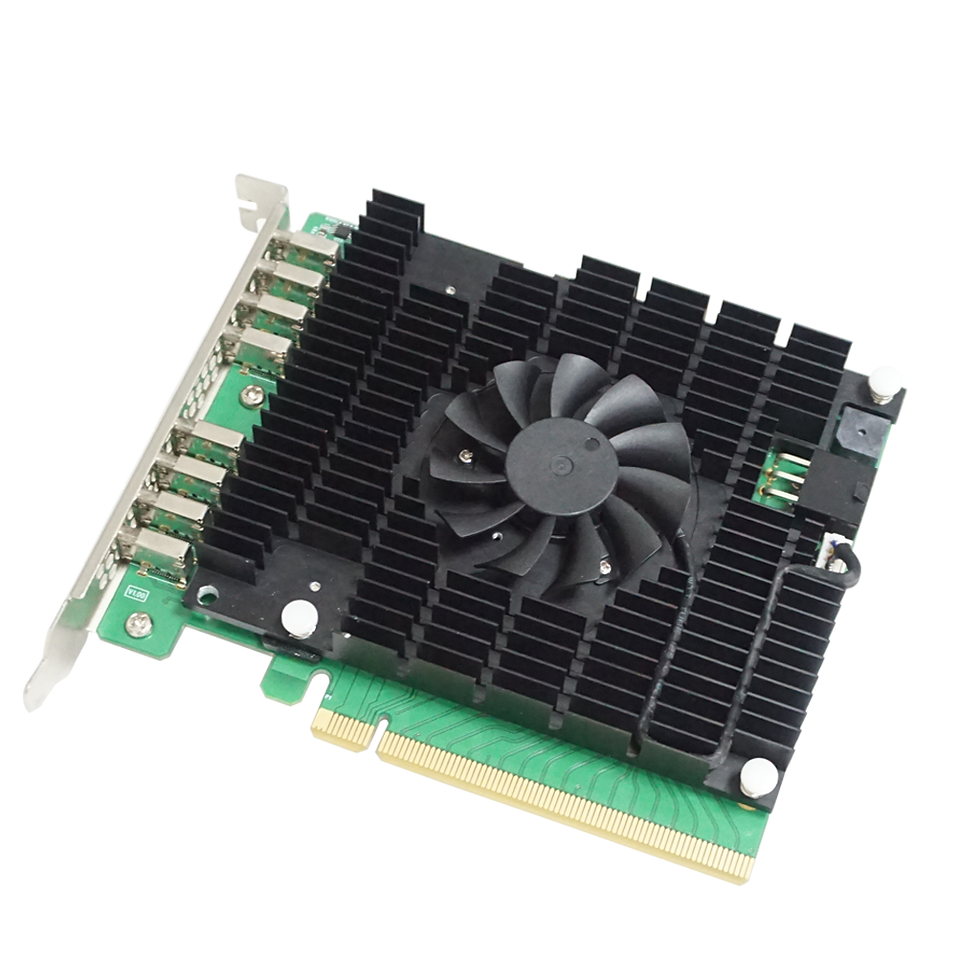

The RocketU 1388D is HighPoint’s 2nd generation 8-Port 10Gb/s USB 3.2 HBA, and is designed to tackle high-speed data acquisition and transfer workflows for industrial applications. Like its predecessor, the RocketU 1388D’s eight USB Type-C can deliver up to 10Gb/s of transfer bandwidth, and are backed by a robust PCIe 3.0 x16 host interface



  • 8 USB-Type C ports support any industry-standard USB device or peripheral

  • Ideal for professional-grade, High-Speed Data Acquisition & Transfer Applications

  • PCIe 3.0 x16 Host Interface

  • Up to 10Gb/s of transfer bandwidth per USB port

  • Native In-Box driver support (xHCI)

Product Information

  • A

  • B

  • Upcoming

Each of the RocketU 1388D’s eight Type-C ports can support up to 10G of transfer bandwidth, and are capable of delivering up to 7.5W of power for device operation or charging purposes


The RocketU 1388D HBA can be easily integrated into workstation and server environments designed to host professional media and industrial applications. The eight industry-standard Type-C USB ports and PCIe 3.0 x16 host interface can easily accommodate a wide range of high-speed data acquisition solutions, including imaging and capture solutions, security systems, and media archiving.

Built for Professional Data Acquisition Solutions

The RocketU 1388D's performance-focused HBA architecture was designed for workflows that demand ease of integration, hot-plug capability, and rapid file transfer. The eight independent 10Gb/s USB ports and PCIe 3.0 x16 host interface can easily accommodate a wide range of high-speed data acquisition applications, including imaging and capture solutions, security systems, and media archiving.

USB Cameras & Imaging/Capture Devices

RU1388D 8 17 2_edited.png

Media Processing & Archiving

RU1388D 2.png

Ideal for High-Speed Data Acquisition & Capture Applications

Universal Device Compatibility    Works with any industry-standard USB 3.x/2.0/1.x device

Universal Device Compatibility



Works with any industry-standard USB 2.0/3.2 Gen1/3.2 Gen2 device

4x 10G USB-C Ports    The RocketU 1344D's four USB Type-C ports can deliver up to 1000MB/s of trasnfer bandwidth

8x 10G USB-C Ports



Each of the RocketU 1388D's eight USB Type-C ports can deliver up to 10Gb/s of transfer bandwidth

USB Device Charging    RocketU 1344D can be used to charge USB compliant devices

USB Device Charging



RocketU 1388D can be used to charge USB compliant devices

xHCI CompliantDriverless Installation: The RocketU 1344D is natively supported modern operating systems

xHCI CompliantDriverless Installation: The RocketU 1388D is natively supported modern operating systems

Ultra-High Performance:  ​  Dedicated PCIe 3.0 x4 Bus-Bandwidth

Ultra-High Performance:

Dedicated PCIe 3.0 x16 Bus-Bandwidth

HighPoint RocketU 1388D 8x 10Gb/s PCIe 3.0 x16 USB Host Controller

Universal Compatibility

RocketU 1388D controllers can be installed into any computing platform with an industry-standard PCIe 3.0 or 4.0 16 slot. The eight independent USB Type-C ports support any industry-standard USB 2.0/USB 3.2 Gen1/USB 3.2 Gen2 device, including USB drives, cameras, printers, capture devices and peripherals.


PC Platforms


Workstations


Rackmounts


Motherboards

Universal Compatibility

Learn More

Feature Specifications

Host Bus Interface

16-lane, 8 GT/s PCI Express 3.0 Compliant
Interface Technology
Supports up to USB 3.2 10Gb/s link speed Backwards compatible with USB 3.2 Gen2, USB3.2 Gen1 & USB 2.0
Supported Standard
xHCI (eXtensible Host Controller Interface) UASP (USB attached SCSI protocol)
Operating System Support (Windows compatibility)
Windows 11,10,8.1
Windows Server 2022, 2016, 2012, 2008 (64-bit editions), Compatible with PCIe slots
Operating System Support (Linux compatibility)
Linux kernel 3.10.0 and later, Compatible with PCIe slots
Operating System Support (VMware ESXi compatibility)

Yes

Secure Boot(PC platforms)

Windows: Support Secure Boot Disable and Enable

Linux: Support Secure Boot Disable and Enable

Number of Channels / Port

8

Port Type

USB Vertical Type C

Data Transfer Rate
Up to 10Gb/s per port
Number of Devices
8 x USB 1.x, 2.0, and 3.x compatible devices
USB port Amperage
1.5A output per port
Bus Powered Peripherals
Up to 7.5W per port for device operation or charging
External Power Support
Yes (Use 6pin PCIe Power Connector)
USB Port Sharing
Shared: 2 USB ports are assigned to each USB controller (ASM3142)
Form Factor
Full-Height
Cooling system
Full-Length Anodized Aluminum heat sink with fan
Dimensions

5.09'' W x 4.38'' H x 0.67'' D

Weight
0.75 lbs.
Warranty

1 Year

Compliance Certification
CE, FCC, RoHS, REACH, WEEE

Storage Features

Bootable Drive support
Yes (Linux)
Drive hotplug support
Yes

Operating Environment

Work Temp:
5°C ~ 45°C
Storage Temp:
40°C ~ 65°C
Operating Voltage
PCI-e: 12V, 3.3V
Power
Typical:9.22W (card only)
MTBF (Mean Time Before Failure)
920,585 Hours

Kit Contents

1x Controller card
1x Quick Installation Guide
